Back up with confidence

JLG’s Skytrak telehandlers are now available with a new multi-reverse camera system, which provides operators with an all-round view when backing up. This optional feature increases job site awareness by displaying multiple views from behind the machine – left, right, and rear. The SkyTrak multi-reverse camera system can be used for day or night operation and features three components: left and right-side back-up cameras, rear back-up camera and a tri-view monitor.

Left- & Right-Side Back-up Cameras

These compact back-up cameras easily mount to the back of the SkyTrak telehandler and provide a wide, 170deg all-encompassing viewing angle behind the machine. Equipped with four infrared lights, the cameras provide high-quality pictures during day or night operation. The images are crisp and clear thanks to the 620 TV lines, and the completely waterproof encasing (IP68 rating) allows operators to use these cameras in all weather conditions.

Rear Back-up Camera

The RVS-812N 120deg ultra-wide viewing angle backup camera is the highest quality camera available on the market today. It boasts a 250,000-pixel, 2.1-mm lens with 30 infrared illuminators for superior night vision, enabling operators to see in total darkness. The diecast casing of the camera is completely waterproof (IP69K rating) to withstand all weather conditions, and the built-in heater can withstand temperatures to -49° F, keeping the camera warm in the coldest of climates.

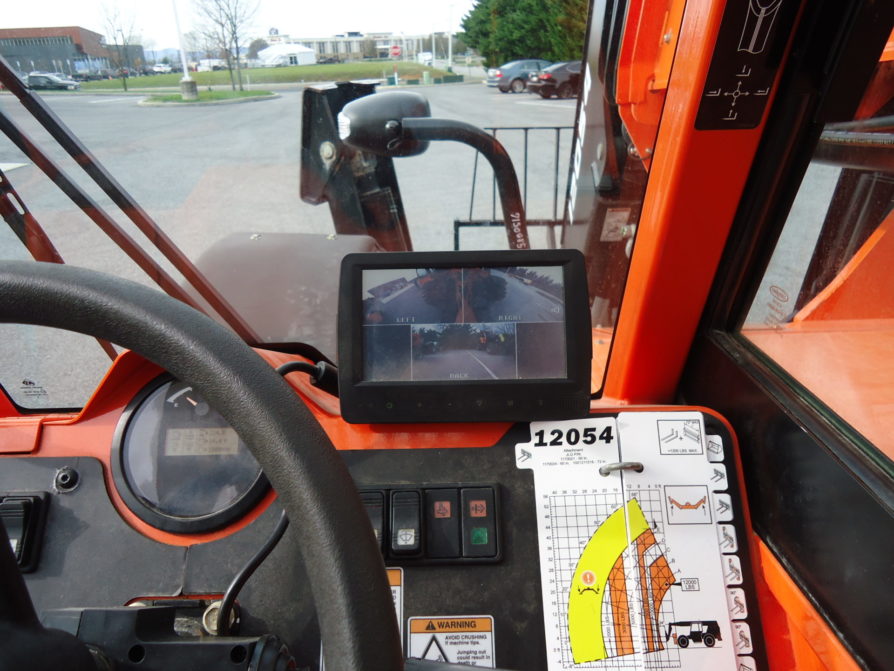

Tri-View Monitor

The 7in, tri-view monitor features a TFT LCD digital colour display with auto dimming for low light conditions. It is equipped with touch screen technology and is completely waterproof (IP69K rating).

The multi-reverse camera is currently available fitted from the factory on new SkyTrak telehandlers.
